The self-injecting device is used when the injection process has to be carried out at low pressure (approx. 1 bar) and over a longer time period to ensure a successful result (e. g. with very fine cracks).
Advantage:
Material to be used
- Cement suspension
- Epoxy resin
- Polyurethane

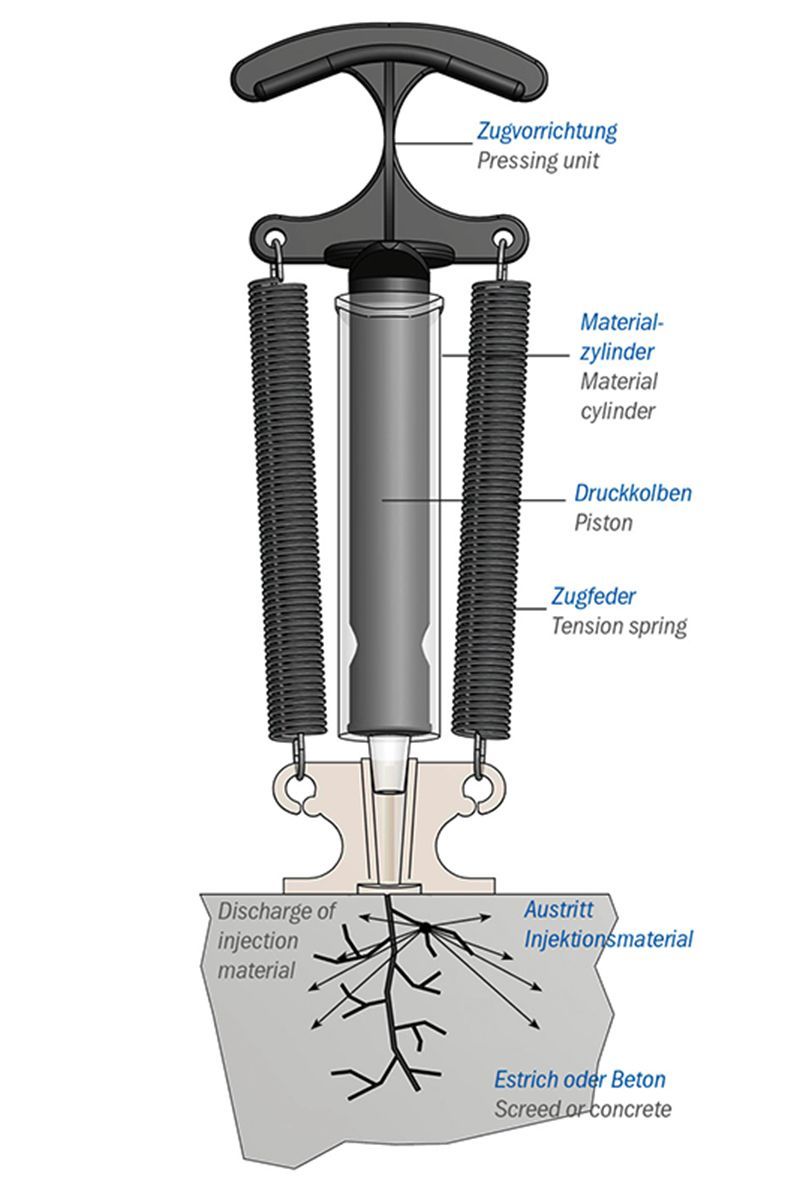

General operation
- Hook the tension springs to the packer
- Draw in injection material using the material cylinder
- Insert material cylinder into the cone
- Place the pressing unit on the piston
- The injection process starts, the material consumption is indicated at the scale
- Repeat filling process if necessary
ADHESIVE PACKER
- Mark the distance between packers
- Grease a steel pin and drive it into the crack
- Bonding with Klebfix
- Apply adhesive (sealing material) on the adhesive surface of the packer
- Place packer
- Seal crack surface up to 3 – 5 cm from the end of crack
- Bonding with hot glue
- Apply adhesive (sealing material) on the adherend of the packer and slip the packer over the steel pin and press the packer on the concrete
- Seal possible open cracks between the injection devices with adhesive
- Remove steel pin from packer
Product for professional use only.
