Load capacity:
125 kN test load EN 124.
Material:
Frame and cover in 2 mm cold-formed precision steel profiles. Hot-dip galvanised. Fire protection panel on stainless steel Z-brackets, fire-resistant seal.
Features:
Accurately-manufactured smell proof access cover. Tapered design allows easy opening. Virtually invisible when installed. Robust steel mesh reinforcement.
Fire test certificate:
The Austrian test certificate issued by the Institute for Fire Protection Technology and Safety Research (IBS) confirms that HAGODECK Type BV-F90 steel resists a fire for 90 minutes and thus significantly contributes to safety in the event of a fire.
In accordance with EN 13501-2, Type BV-F90 is classified in fire resistance class REI 120 (a↔b).
The Lift-Off opening system:
Every HAGODECK Type BV-F90 steel cover comes with a set of lifting keys and precise installation instructions. After lifting out the cover, the fire protection panel can be removed using its grab handle. The shaft is then accessible without restriction. The HAGO advantage: jammed covers are released by simply turning the Golden Key.
Applications:
Access covers inside buildings that are required to be fire-resistant.
Installation:
Installation must be carried out according to our instructions. With water-tight models, care must be taken to seal the outer frame into the surrounding flooring.
Other versions available in fire-proof finish (including test certificate):
- Stainless steel access covers See price list: Type BVE-F90
- Multi-part covers (on request)
- Access covers with gas struts for assisted opening (on request)
Types & Dimensions
Type |
Clear dimensions of shaft
|
Outside dimensions
|
Weight empty
|
|---|---|---|---|
| c x d | A x B | ||
| BV-F90 33 | 30 x 30 | 43,5 x 43,5 | 13 kg |
| BV-F90 45 | 45 x 45 | 58,5 x 58,5 | 21 kg |
| BV-F90 55 | 50 x 50 | 63,5 x 63,5 | 23 kg |
| BV-F90 64 | 60 x 40 | 73,5 x 53,5 | 23 kg |
| BV-F90 66 | 60 x 60 | 73,5 x 73,5 | 30 kg |
| BV-F90 635 | 63,5 x 63,5 | 77,0 x 77,0 | 32 kg |
| BV-F90 86 | 80 x 60 | 93,5 x 73,5 | 38 kg |
| BV-F90 88 | 80 x 80 | 93,5 x 93,5 | 45 kg |
| BV-F90 106 | 100 x 60 | 113,5 x 73,5 | 45 kg |
| BV-F90 108 | 100 x 80 | 113,5 x 93,5 | 54 kg |
| BV-F90 110 | 100 x100 | 113,5 x113,5 | 63 kg |
- Cover depth ≈ 5.2 cm
- Installation height ≈ 8.9 cm

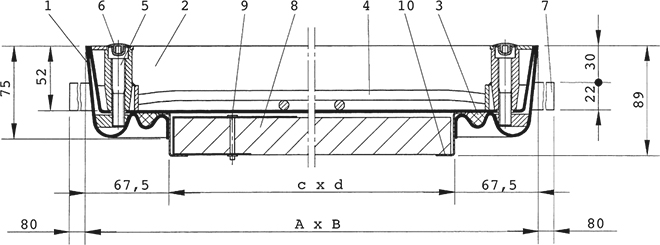

| 1. Frame | 6. Plastic cap |
| 2. Cover | 7 Anchor |
| 3. Seal (fire-resistant) | 8. Fire protection panel |
| 4. Reinforcement | 9. Grab handle with blind rivet |
| 5. Allen screw | 10. Stainless steel Z-bracket |
Product for professional use only.
