Load capacity:
125 kN test load EN 124.
Material:
Frame and cover in 2 mm cold-formed precision steel profiles. Hot-dip galvanised. Insulated version, consisting of: Z-brackets, EPDM seal, polyurethane rigid foam insulation panel coated with aluminium on both sides. Thermal resistance = 3.2 m2 K/W Thermal coefficient 0.3 W/m2 K (=RC Warde)
Features:
Sealed cover with inlaid insulation panel. Tapered design allows easy opening. Virtually invisible when installed. Robust steel mesh reinforcement.
The Lift-Off opening system:
Every HAGODECK Type BV thermo cover comes with a set of lifting keys and precise installation instructions. The HAGO advantage: jammed covers are released by simply turning the Golden Key.
Applications:
For areas inside buildings where a cover with insulation properties is required.
Installation:
Installation must be carried out according to our instructions. With water-tight models, care must be taken to seal the outer frame into the surrounding flooring.
Types & dimensions
Type |
Clear dimensions of shaft
|
Outside dimensions
|
Weight empty
|
|---|---|---|---|
| c x d | A x B | ||
| BV-Thermo 55 | 50 x 50 | 63,5 x 63,5 | 19 kg |
| BV-Thermo 66 | 60 x 60 | 73,5 x 73,5 | 23 kg |
| BV-Thermo 86 | 80 x 60 | 93,5 x 73,5 | 29 kg |
| BV-Thermo 88 | 80 x 80 | 93,5 x 93,5 | 33 kg |
| BV-Thermo 106 | 100 x 60 | 113,5 x 73,5 | 33 kg |
| BV-Thermo 110 | 100 x 100 | 113,5 x 113,5 | 45 kg |
- Cover depth ≈ 5.0 cm
- Installation height ≈ 7.5 cm
- Insulation panel penetrates ≈ 6.3 cm into the shaft.

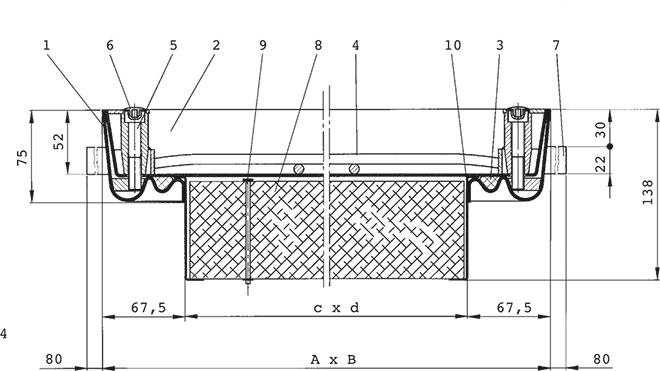

| 1. Frame | 6. Plastic cap |
| 2. Cover | 7 Anchor |
| 3. Seal | 8. Insulation plate in Z-bracket |
| 4. Reinforcement | 9. Lifting handle for insulation plate |
| 5. Allen screw | 10. Alu Z-bracket |
Product for professional use only.
